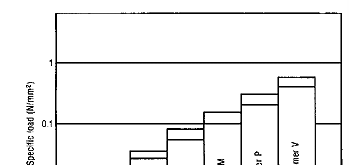

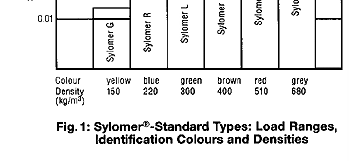

SYLOMER Sylomer – the special PUR-Elastomer by Getzner – is used in its cellular or compact form for many applications in civil engineering and machinery. In most of them, Sylomer is used as an elastic interlayer like a spring. The characteristics of this spring can be adapted to the need of application and of the construction, or the construction method by selecting the Sylomer –type, the thickness and the loaded surface area. Sylomer materials are produced in a continuous process. They are available as strips up to 1.5m wide and are therefore especially suitable for elastic coverings with large surface area. Furthermore, stamped or molded parts of Sylomer are available for special applications. The standard types (see graph below) include Sylomer materials with densities between 150 kg/m3 and 680 kg/m3. For special applications, separate types are fabricated with specifically adapted density or cross linking, as well as the compact material. The fine cellular structure allows for the necessary deflection
when loaded statically or dynamically. So that elastic
bearings with full surface contact and low power transmission
density become possible. This is a big advantage concerning
construction, design and economy, especially in civil engineering.
|
 |
|
|
