Bare Cross Laminated Timber Floors from FIREFLY

Fire Stopping Various Service Penetrations through Core Holes in BARE Xlam Cross Laminated Timber Floors

Further to our ongoing & Comprehensive 2022, AS1530.4-2014 Fire Testing Program.

TBA Firefly™ are pleased to announce that we can now provide Fire Stopping Solutions for the members of the Cross Laminated Timber Industry who would like to keep the beautiful look of the CLT visible without the requirement to cover it up with Fire Grade Plasterboard, whilst still maintaining: Full DTS Compliance with the NCC

TBA Firefly™ Systems must be Designed/Installed/Signed Off in Strict Accordance with the concise construction details contained within the following Compliance Report and ID No's for the Specific Application and FRL achieved.

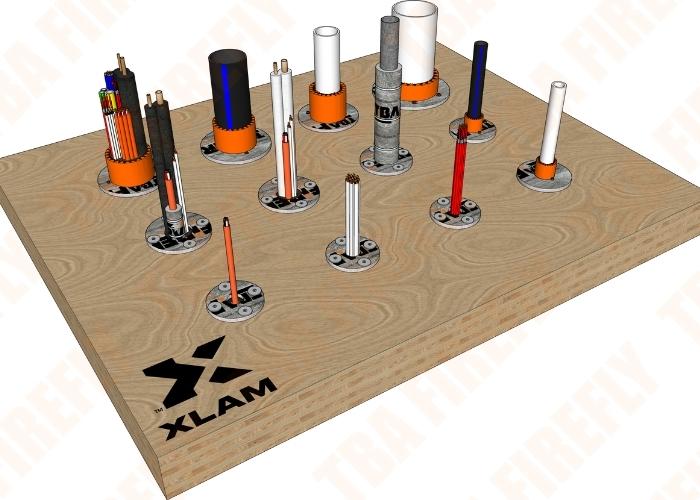

Over 46 TBA Firefly™ FRL-/90/90 Systems protecting Electrical, Communications, Mechanical, Fire & Security, Plumbing & Hydraulic & Wet Fire, service Penetrations passing through Core Holes in XLAM 90 Minute Bare CLT 130mm thick Floor System.

Over 46 TBA Firefly™ FRL-/60/60 Systems protecting Electrical, Communications, Mechanical, Fire & Security, Plumbing & Hydraulic & Wet Fire service Penetrations passing through Core Holes in XLAM 60 Minute Bare CLT 130mm thick Floor System.

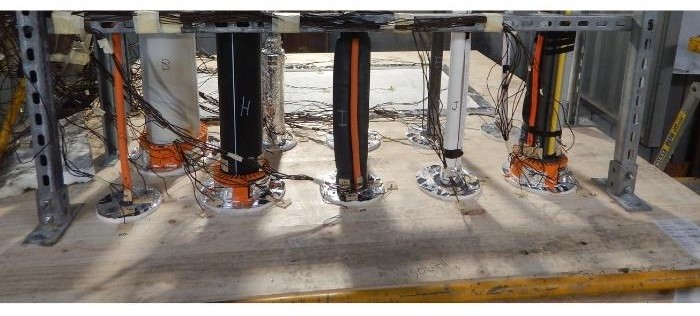

All Tested in accordance with AS1530.4-2014 and Assessed in accordance with AS4072.1-2005 and confirmed in Reports from an Accredited Testing Laboratory.

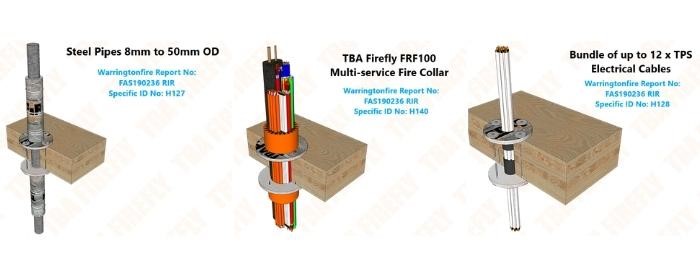

Warringtonfire Report No: FAS190236 RIR Specific ID No's: H121 through to H140

These Reports are from an Accredited Testing Laboratory which meet Specification A2.3 Section 2 (c) of NCC2016 Amendment 1 (Including Prior Versions) & Schedule 5 Section 2 (c) of NCC2019 (Including Amendment 1) & Specification 1, S1C2 Part (c) (i) & (ii) of NCC 2022 (Preview) for determination of an FRL.

For more details, please click on the link below:
www.tbafirefly.com.au
