Plug Flange for Insulation Inspections by Bellis

Plug Flange for Insulation Inspections by Bellis.

Corrosion Under Insulation is a common problem in piping systems, especially those that operate in high temperatures. Moisture can accumulate in the insulation system, which can then cause corrosion on metal pipes. A plug flange for insulation inspections from Bellis can help prevent this problem.

With a plug flange, you don't have to remove your insulation system if there are no issues. An insulation inspection plug is ideal for superheated, ambient, and cryogenic applications. This non-destructive testing method helps in reducing human error and also increases workplace safety.

Plug Flange for Insulation Inspections by Bellis.

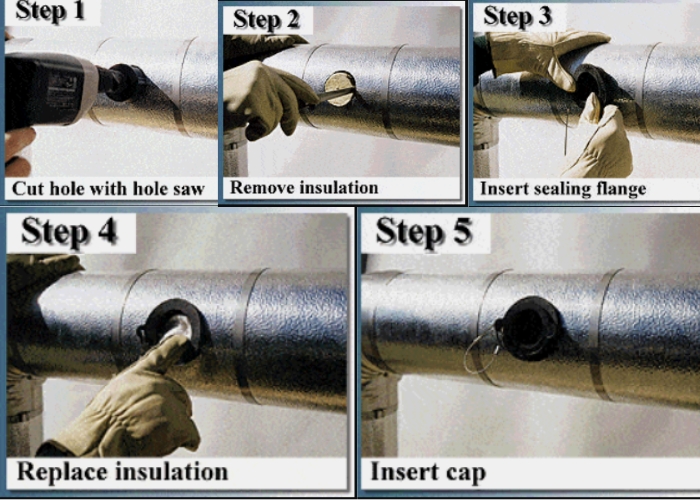

Installation for the plug flange is fairly simple, and you just need to follow 5 steps. First, you cut a hole through your insulation system using a saw, then you remove the insulation. Next, you can insert the sealing flange and replace the hole you made. Insert the cap for the plug flange, and you are done.

The best place to make a hole is at a 6 o'clock position. You can then make holes every 3 metres of the system. If you need help with the plug flange for insulation inspections, don't hesitate to contact Bellis. You may also visit bellis.com.au for more information.
