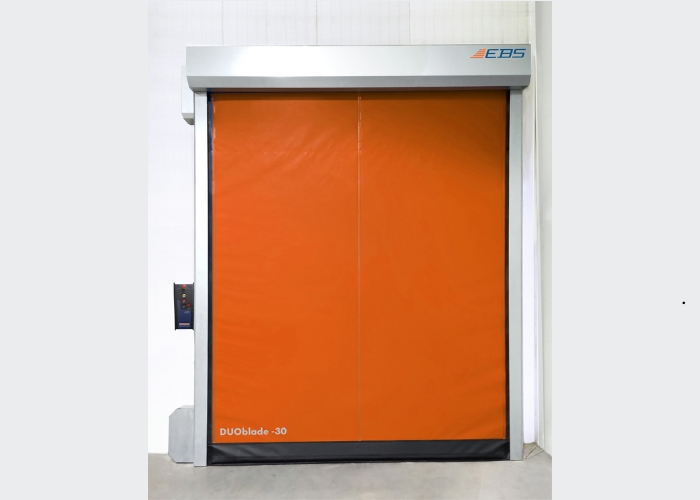

EBS DUOblade HIGH-SPEED DOOR Dual-Curtain System

EBS DUOblade HIGH-SPEED DOOR Dual-Curtain System.

EBS is proud to announce a new high-speed door to complement our cold chain product offering.

The EBS DUOblade is a dual-curtain system, which aids in isolating freezer or chiller environments from warmer spaces, thus reducing convection. This door boasts a U-Value of 2.0 (W/M2K).

The design of the DUOblade door incorporates two high-speed curtains opening and closing simultaneously, forming a sealed cell. An electric hot air blower fills the void between the two curtains; when closed, these curtains form a sealed warm cell, effectively preventing any icing from occurring.

The DUOblade features a GfA (German-made) motor and controller, with opening speeds of up to 2.0 meters per second. This operating speed is crucial for reducing energy loss and guarantees that the door functions effectively in relation to incoming traffic, thereby ensuring high productivity and lowering the risk of damage from MHE and forklifts.

EBS DUOblade HIGH-SPEED DOOR Dual-Curtain System.

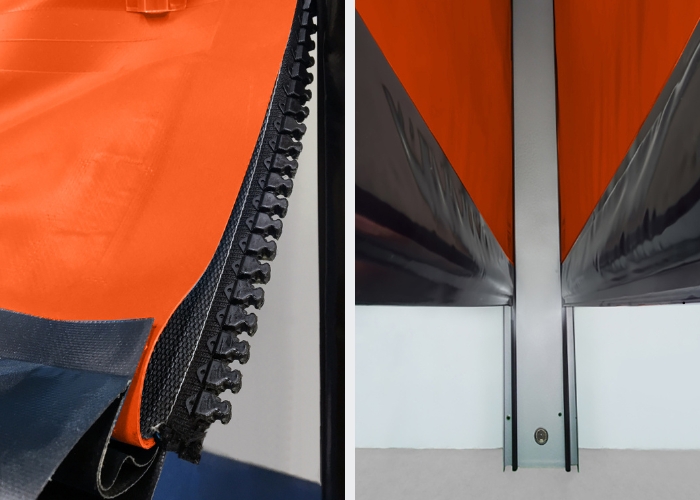

Should an incident or impact occur which causes the door curtains to release from the tracks, they will automatically re-feed back into place (self-repair) with the next cycle, minimizing downtime and usually not requiring a call-out from a technician.

The EBS DUOblade dual curtain system aids in isolating freezer or chiller environments from warmer spaces, thus reducing convection. It can be applied in a variety of entrances, especially those found in cold storage and temperature-controlled environments at temperatures as low as -35°C and up to +45°C.

To discuss your project's requirements, contact EBS Entrance Solutions: contact@ebssolutions.com.au, via phone 1800 877 888 or +61 3 87 877 877 or visit their website at www.ebssolutions.com.au
