Containing an entire row of air can improve capacity and energy efficiency by reducing by-pass airflow. The separation of cold supply air from hot exhaust air is one of the most popular strategies in data centre design. Tate's ContainAire® product line is the optimum aisle containment solution. Easy to install and modify, our products offer valuable energy savings opportunities. Optimise your data centre facility today by installing ContainAire®.
Tate's ContainAire® Dual Sliding Doors are the ideal solution for both cold and hot aisle containment. Combining cost-effectiveness with ease of installation, the no threshold design eliminates tripping hazards. Frame components are pre-assembled and connect to the header rail to secure the assembly together. Integrated slide-locks simplify door installation onto the frame.
A factory installed full perimeter compression gaskets seals the door frame and minimises air leakage. Ergonomic angled handles reduce pinch points. Clear and multiwall panel options are available. The multiwall panel adheres to NFPA 75 & 76 flame spread and smoke development requirements. With two finish options to choose from, these dual sliding doors compliment all data centre designs.
Single Sliding Door
No threshold design
Single Sliding Door.
This design choice helps facilitate data centres where obstructions may prevent the door from opening smoothly. The sliding door comes with pre-assembled panels and integrated door slide-locks which simplifies installation.
Factory installed full perimeter compression gaskets efficiently seal and minimize air leakage, improving the efficiency of your data centre facility. With strong aluminium framing, our no-threshold design prevents obstructions or tripping. Ergonomic handles also reduce pinch points. Two panel options are offered, with the multiwall option adhering to NFPA 75 & 76 flame spread and smoke development requirements.

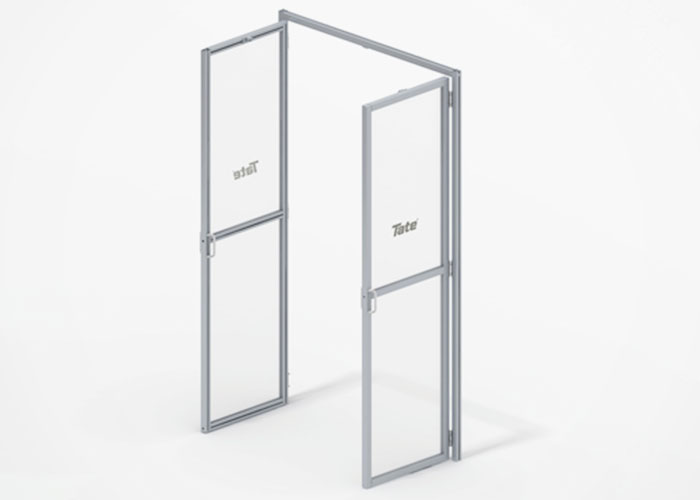

Dual Hinged Door
Pre-assembled cost effective double hinged door for sealing aisle ends in data centers
Dual Hinged Door.
Tate's Dual Hinged Doors are the ideal solution for both cold and hot aisle containment. Combining cost-effectiveness with ease of installation, the no threshold design eliminates tripping hazards. Frame components are-preassembled and fully floor supported with rack attachements for lateral stability.
A factory installed full perimeter compression gaskets seals the door frame and minimises air leakage. Ergonomic angled handles reduce pinch points. Clear and multiwall panel options are available. The multiwall panel adheres to NFPA 75 & 76 flame spread and smoke development requirements. With three finish options to choose from, these dual hinged doors can complement any data centre designs.
Single Hinged Door
Leading solution for aisle ends of hot and cold aisle containment
Single Hinged Door.
Tate's single hinged door is the leading solution for aisle ends of hot and cold aisle containment configurations. The pre-assembled aluminium design with lift off hinges allows for quick and easy installation. With a standard right or left hinge option, the doors can also be custom built to suit your particular data centre requirements. Viewing panels can designed with clear or multiwall polycarbonate.
The no threshold design eliminates any tripping hazards and ensures that there are no obstructions when walking in or out of the aisle. A factory installed perimeter compression gasket system minimises air leakage.
Fully supported by the floor, with rack attachments for additional stability, Tate's single hinged door is the perfect complement to your high performance data centre.
Field Flexible Partition
Stick built partition system for any aisle environment
Field Flexible Partition.
Tate Field Flexible Partitions are ideal for use in any containment applications. The system feature 5 aluminum extrusion profiles and that are used with multiwall polycarbonate to create custom hard partition in the field. The partitions can attach to a drop ceiling over head or be mounted to the top of the cabinets using angle brackets.
The unique extrusion design holds the multi-wall panel in place without the need for screws or other fasteners. Field trimming the aluminum extrusions allows for a seamless partition over varying cabinet heights resulting in an improved containment system. The lightweight system is quick to install, completely customisable and ready to ship saving both time and money.

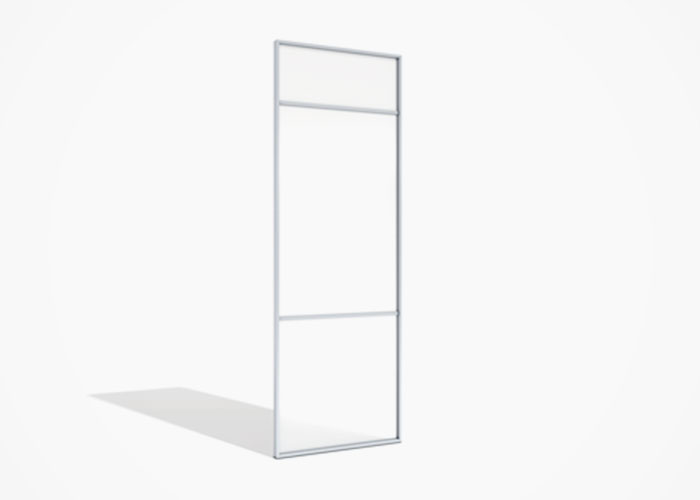

Hard Partition
Versatile and customisable
Hard Partition.
Tate ContainAire® Hard Partitions are an exciting alternative to traditional soft partitions. Constructed of aluminium, with several finish options, the partitions can be customised to seal numerous gap sizes and areas. Designed to be used in either hot or cold aisles, ContainAire® Hard Partitions are custom sized for every job to ensure air leakage is minimised. Lightweight, cost effective and attractive looking, ContainAire® Hard Partitions come pre-assembled with supplied brackets for quick and easy installation.
Hard Roof
Maximize energy efficiency & cooling capacity
Hard Roof.
Tate's unique hard panel roof fully segregates hot and cold air, improving the cooling capacity of any data centre. It attaches to the top of the rack and lies flat to avoid interference with other overhead obstructions and extrusions. Should a fire occur, the roof panels' drop away to allow overhead suppression systems to work within the aisle. Incorporating clear or black anodized aluminium tracks Tate's hard roof has been engineered to provide long lasting results.
The ContainAire® hard roof kit includes all of the components and fasteners required to assemble and install the roof containment system. Its modular design means that it can be installed in nearly any location in the data centre. Tate's hard roof can be customised to suit different width and length requirements.
Wall Partition
Fast and easy data center partitioning
Wall Partition.
Tate Wall Partitions are ideal for dividing spaces to meet colocation, departmental, privacy or other requirements. Constructed of painted aluminium frames the partitions can be customized to a wide range of dimensions. There are four panel types available including clear polycarbonate, multi-wall polycarbonate, white AMC and expanded aluminum to meet any privacy and security needs. The wall partition system includes all of the components and brackets required to assemble and install.
For more information, visit www.tateapac.com.
