The Brawny Floor Expansion Joints Range from Unison Joints

Unison Joints offers a versatile range of floor expansion joint solutions to suit all kinds of building and construction projects, from public infrastructure such as hospitals and transport facilities, to large retail centres and bulky-goods outlets. Proudly Australian, Unison Joints has been in service to the building sector in Australia for 16 years and counting. With an established reputation for customer-driven quality, the Queensland-based company continues to expand their trusted catalogue to provide world-class resources for better construction.

Floor Expansion Joint Systems by Unison Joints
Expansion joint gaps are designed to provide structural relief to buildings from movement impact caused by various factors, such as thermal changes, wind velocity, concrete creep and shrinkage, seismic activity and other factors. Movement Joint Coverplate systems are designed to transition these gaps while protecting the edge of floor systems; they provide a safe, trip-free span for trafficability of vehicles, pedestrians, trolleys and other forms of traffic. For the heaviest traffic loads, Unison Joints proudly presents the Brawny range of cover plate systems.

Brawny N was envisioned to be the best car park cover plate system in the market. Unison Joints delivers successful results with an innovative design that promotes excellent facility to heavy loads of rolling traffic. Boasting the highest build quality among the floor expansion joint systems of Unison Joints, the Brawny lineup includes:

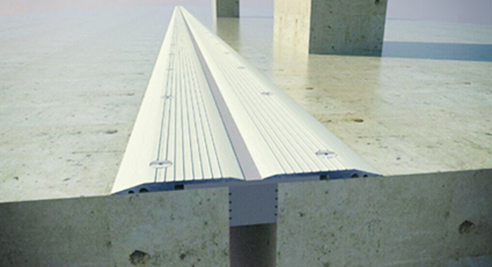

1. Brawny C (By C)

Brawny C extra heavy duty expansion joint

By C is an extra heavy duty expansion joint system with a range of applications. The standard cover plate is fabricated from high-grade alloy in mill finish, as accounted for the high capacity of By C. The coupling system of By C consists of centre bars connecting the alloy components together. The c-bars are built with injection moulded composite blend for outstanding corrosion resistance.

The sophisticated design of By C allows extra heavy duty facility to bulky service equipment, such as forklifts, scissor-lifts and pallet trolleys. The squared edges of By C reinforce this facility by eliminating horizontal wheel impact. The coverplate can be supplied in stainless steel, anodised alloy, or bead blasted for a 'V' class slip resistance rating. By C guarantees long lasting service in both indoor and outdoor applications, including loading docks, retail trading floors, back of house areas, exhibition centre floors.

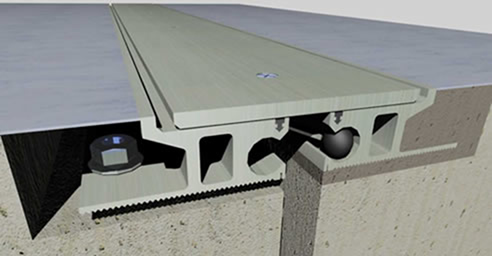

2. Brawny N (By N)

Brawny N carpark Expansion Joint system

ByN/AqP combination is the best carpark Expansion Joint system in the market. Hence, the product development team based its design on Unison Joints' Aquo P (Aq P), critically acclaimed for 100% watertight seals. Through demanding research and refinement, By N came to be.

ByN is a low-profile cover system which protects the AqP from a carparks harsh environment. The ByN's tapered edges provide a smooth transition for shopping/luggage trolleys, pedestrians and vehicles over the movement gap, whilst the neoprene pad provides high flexibility, maintaining considerable movement in all directions including differential-vertical. The standard edge retainer is extruded from high grade 6061 T6 alloy. It is natural anodised for an architectural finish, and corrosion resistance. The structural integrity and movement capacity of the ByN/AqP ensures long-lasting service and a watertight facility.

For more information on the Brawny range of floor expansion joints, call 1300 214 015 or visit www.unisonjoints.com.au today.
