Fire-Stopping Multi-Service Penetrations by FIREFLY

FIREFLY Fox: A Smart Solution for Fire-Stopping Multi-Service Penetrations

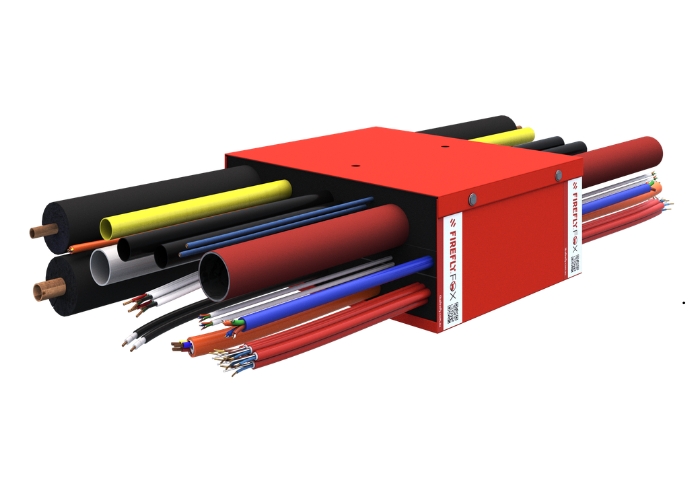

FIREFLY Fox is a multi-service penetration box used to provide fire stopping for services passing through fire-rated separating elements.

It is installed within openings formed in fire-rated walls and accommodates multiple mixed services passing through a single penetration location. FIREFLY Fox incorporates intumescent materials within the box assembly to provide fire protection around services passing through the penetration. Foam blocks installed at the perimeter of the box opening form a smoke seal around services and allow the penetrate on to be sealed from one side of the separating element.

FIREFLY Fox is supplied flat-packed, with assembly and installation fixings, and its lightweight steel construction assists with handling during installation.

Dimensions (when assembled) 300 mm wide x 125 mm high x 250 mm deep. Weight 2.3 kg.
