Vibration and noise control systems, isolation
products, rubber springs, rubber mountings and isolation
hangers.
|
For more than 70 years
Embelton has applied its broadly based
technical skills to a wide range of
engineered products and services.
As a leader in development
and adaptation of technology for vibration
and noise control systems, Embelton
delivers isolation products of Australian
design and manufacturer to both domestic
and export markets.
|
|
|
Spring
Mountings
Housed Mountings: Types
B, C, D and CX with integral stabilizers.
Used
where some control of lateral motion
of equipment is required; and for an
economic solution where high unit loads
are involved.
|
|
|
*
Static deflections - 25 to 100 mm.
*
Load Range - 30 to 4,375 kg.
Open:
Types A, AWH, X, XD and XT
General
purpose mountings; spring, cup located.
Static
deflections - 25 to 150 mm. * Load Range
- 10 to 10,350 kg higher loadings on
application
Vertically Restrained:
Types AWR, ADR, XWVR and XDVR
Used
where equipment must be restrained from
moving upwards due to reduction in weight
(eg. cooling towers, boilers etc.)
*
Static deflections - 25 to 50 mm. *
Load Range - 60 to 4,600 kg, higher
loadings on application
|
|
Rubber Mountings
Types
R, RD, and SMW
Moulded in oil-resistant
elastomer, coloured for load identification.
Alternative elastomers available to
order. Provide an economic solution
for many applications.
* Static deflections
- Single deflection 5-6 mm, Double deflection
10-12 mm.
* Load Range - 15 to 1360
kg
|
|
|

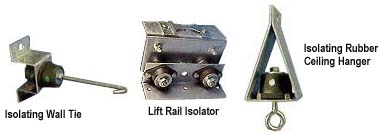

Isolation Hangers
Rubber
Element: Types RH, RHD, RNC and RHDC
Provide
vibration isolation and is an effective
high frequency (acoustical) barrier.
Available as element only with clearance
hole (Type RHE), or as caged hanger
for insertion into suspension rod.
*
Static deflections - Single deflection
5-6 mm, Double deflection 10-12 mm.
*
Load Range - 15 to 1360 kg.
Spring
Element: Types SHS, SH and SHW
General
purpose hangers. Available as element
only with clearance hole (Type KDX),
or as caged hanger for insertion into
suspension rod.
* Static deflections
- 25 to 100 mm. * Load Range - 10 to
4,600 kg.
|
|
Spring & Rubber
Elements: Types RSHS, RSH, RSHW &
RSHD
For use in critical applications;
combine the low frequency performance
of the spring with the high frequency
performance of the rubber element. Available
as caged unit only.
* Total static
deflections - 30 to 105 mm.
* Load
Range - 10 to 4,600 kg.
|
|
|
|
|
