Lasercut Capabilities from Hunt Engineering

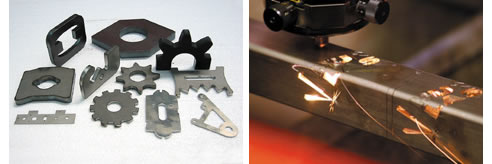

We can cut a wide range of materials to suit your project.
OUR CUTTING CAPABILITIES
- MILD STEEL Up to 20mm thick
- BISALLOY Up to 16mm thick
- STAINLESS STEEL Up to 12mm thick
- ALUMINIUM Up to 10mm thick
- GALVANISED All available thicknesses
- TITANIUM Up to 6mm thick
- ZINC SEAL All available thicknesses
- ZINC ANNEAL All available thicknesses
ROTARY AXIS CAPACITY
- Max. Pipe diameter 15mm to 315mm
- Max. RHS size 200mm x 200mm
- Max. Feedthrough size 155mm
- Max. Processing length 2100mm
EDGE FINISHES
- Mild Steel Smooth edge up to 20mm thick.
- Stainless Steel Bright oxide free edge.
- Aluminium Bright oxide free edge, slight hard burr on underside of aluminium over 4mm thick.
