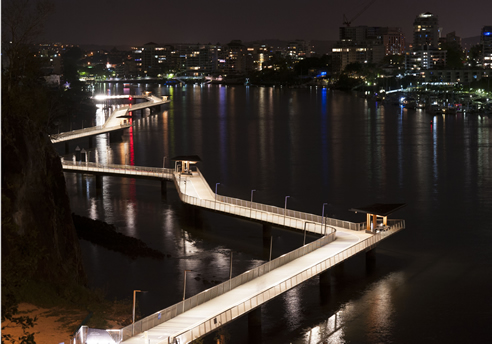

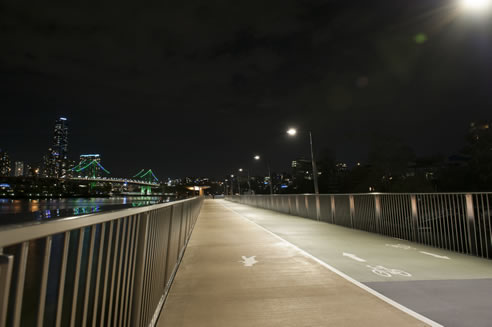

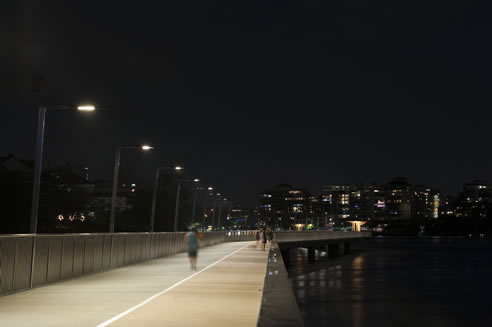

Post mounted WE-EF VFL540 street and area lighting luminaires illuminate the main expanse of the walkway

Brisbane-based lighting company Raylinc supplied post mounted WE-EF VFL540 street and area lighting luminaires to illuminate the main expanse of the walkway, while ETC300 series inground uplights and FLB400 series floodlights were used in pedestrian shaded areas and tourist lookouts.

These WE-EF products were seen as unique in that they provided a low wattage solution with good optic distribution to suit the application - that had fixed pole spacing, fixed pole height and fixed outreach arm length. The aesthetic shape of the VFL540 also complemented the pole profile.

"At the time, to specify LED luminaires may have been seen as a risky, unknown quantity," Richardson explained. "Various products were on the market and due to the unknowns it was much safer specifying a well-known manufacturer; that is certainly still the case now with LED luminaires".

While the council did not have significant experience at that stage in specifying LED for exterior applications, it was shown by ARUP that such a light source presented a better option than a high-wattage metal halide luminaire. Using 2-3 times less power to achieve the same 'P' lighting category required, and providing a long life with minimal maintenance even in a fairly harsh marine environment, were key factors in its favour.

Making the grade
The main challenge of this project was to meet the criteria for 'P' category lighting, based on fixed pole locations, fixed pole heights and fixed luminaire overhang distances.

"Two options were available to suit the requirements - either a higher wattage HID luminaire at longer pole spacing or a low wattage LED luminaire at short pole spacing. It was requested that the pole spacing be set based on a 30-metre structural pile spacing. However, with the fixed design parameters, a 30-metre spacing did not quite work with various higher wattage luminaires; therefore, the decision to install luminaires at 30 metres, and then evenly in between, suited the lower wattage VFL LED luminaire," Richardson said.

"Some of the limiting factors included the path width, pole height, pole outreach arm length, luminaire overhang distance and architectural aesthetics, i.e., where the poles could be placed in relation to the structural elements. Together with the many limiting factors, it was determined that a lower wattage and shorter pole spacing provided a better, more uniform lighting design," he explained. A lower wattage luminaire was also suited to the cable sizes and circuit quantities constraints of the electrical infrastructure.

"The rectangular sharp edges of the WE-EF VFL luminaire also tied in well with the architecture," Richardson added.

The VFL540's advanced control options, which range from simple power-saving dimming systems to complex asset management, provided the necessary flexibility.

"In conjunction with being able to select a specific optic distribution to best suit the application, the light was well controlled and resulted in limited spill light into the river. This allowed the design to become very finely tuned," Richardson said.

The wide range of wattages and beam distribution offered by WE-EF meant that standard products could be specified without any customisation being required. Additionally, the full cut-off design of the VFL540 luminaire provided critical glare-controlled illumination for pedestrians and especially for the maritime vessels.

The combination of low maintenance luminaires and a new resilient walkway design makes the New Farm Riverwalk a Brisbane landmark that will last well into the future.

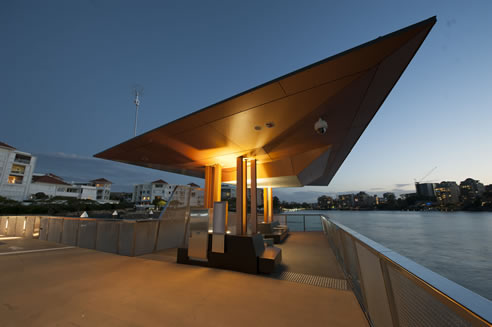

ETC300 series inground uplights and FLB400 series floodlights were used in pedestrian shaded areas and tourist lookouts.
