Masterfully Striking the Balance between Old and New by WE-EF

In the heart of Sydney's CBD sits an architectural award-winning brick masterpiece composed of over 300,000 bricks and spanning the width of an entire block, characterised by its unique sculptured arches. Created for Crown Group, the inspired brick facade pays homage to the historic Sydney buildings, while still exuding a modern inner-city living feel.

The delicate detailing of the Bowral bricks used, and the red tones bring warmth to the suburban jungle that is the Sydney CBD. For this project, the lighting design challenge was to enhance that balance between old and new and accentuate the beautiful arches.

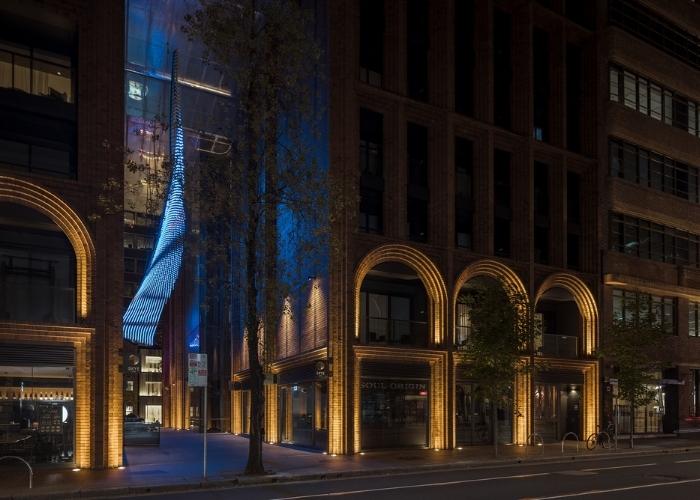

Created for Crown Group, the inspired brick facade pays homage to the historic Sydney buildings, while still exuding a modern inner-city living feel.

The two 29-storey towers were designed by world-renowned Koichi Takada Architects. The $118M project took 163 weeks to build and contains 148 apartments. In lighting the beautiful arches, there were several important considerations:

• Discreteness of luminaires; blending into the surrounds rather than standing out
• Flexible mounting options
• Quality optics with the ability to tightly control and direct light whilst preventing glare
• Longevity and robustness of luminaires given close proximity to the harbour
• Minimal need for maintenance, backed by confidence in a strong supplier warranty
• Safety for pedestrians in the area

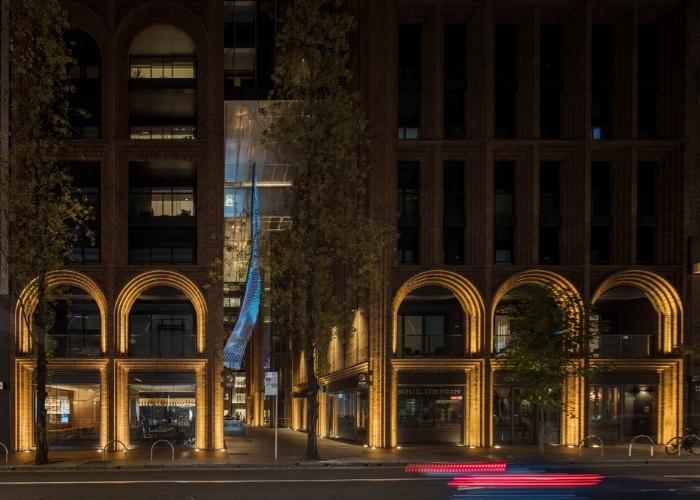

The lighting design challenge was to enhance that balance between old and new and accentuate the beautiful arches.

A combination of 16 x WE-EF FLC121 3000 K medium beam projectors with linear lenses and glare shields were chosen, together with 14 x FLC121 3000 K very narrow beam projectors fitted with framing snoots for tight cut-off, these were mounted in a variety of positions to artfully distinguish the features of the delicate brickwork arches. The small and sleek stature of these products in 'signal black' colour allows the luminaires to blend in discreetly while delivering a beautiful ambient warm light, wherein which the light source is barely visible.

For uplighting, ETC330-GB 3000 K very narrow beam, gimble inground luminaires were used with anti-slip coating. In a busy CBD, an in-ground that could prevent any slipping hazards was important, as was the ability to precisely direct light only where it is needed by angling the gimble and using with a very narrow optic.

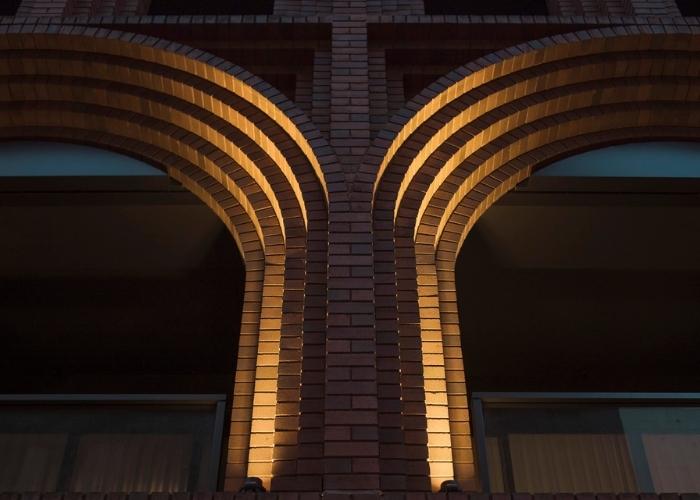

A combination of FLC121 and FLC131 projectors was mounted in a variety of positions to artfully distinguish the features of the delicate brickwork arches.

The 3000 K colour temperature selection was important in accentuating the earthiness of the red bricks. With less blue content than 4000 K which is traditionally used around the CBD, the warmer 3000 K colour, creates a more enchanting, welcoming feel while also bringing the warmth out of the architecture. At the same time, with less blue content, 3000 K is also less disruptive to the local ecosystem at night.

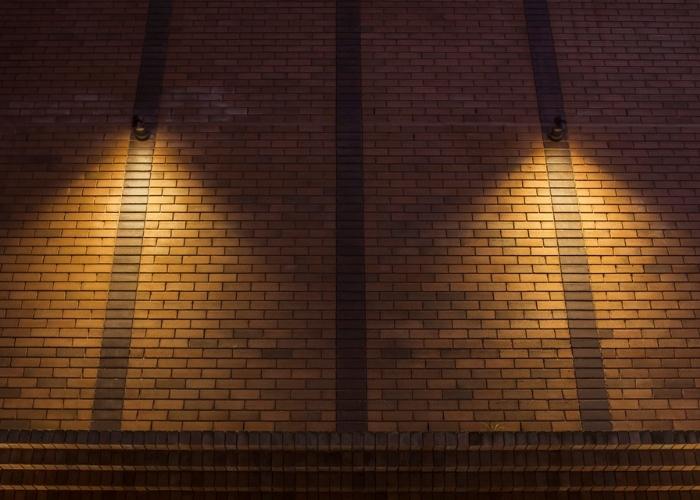

The small and sleek stature of these products in 'signal black' colour allows the luminaires to blend in discreetly while delivering a beautiful ambient warm light.

Being harborside, marine-grade aluminium and a strong corrosive-resistant coating were important attributes needed, to ensure the maximum longevity of the installation. Having established a strong reputation for quality robust products with a well-regarded 5CE + Primer anti-corrosion coating process (that is now standard for all WE-EF products in Australia and New Zealand), WE-EF was also selected due to the comprehensive 10 Year Warranty provided to back up the renowned quality, as involved stakeholders knew the installation would require little to no maintenance for many years to come.

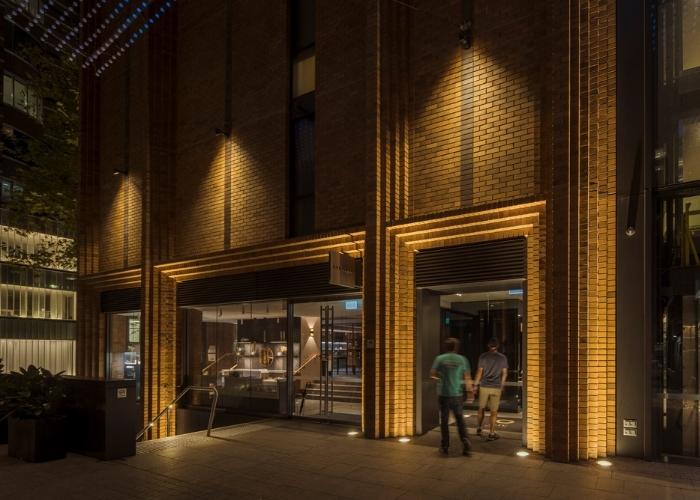

For uplighting, ETC330-GB 3000 K very narrow beam, gimble inground luminaires were used with anti-slip coating.

THE RESULT:

The combination of WE-EF luminaires gently and precisely illuminate the facade. The clever lighting design and use of snoots and glare shields ensure there is no unnecessary light spill, and that the beam is targeted directly to frame the iconic arches, really enhancing the heritage aesthetics and the warm 3000 K temperature creates an earthy, enchanting ambience. With the uplighting application, the gimble and very narrow beam combination are well-considered to ensure the light is, once again being directed sharply to where it is needed.

Completed: 2018
Client: Crown Group
Architect: Koichi Takada Architects
Facade: AECOM, Inhabit Group, Surface Design Pty Ltd
Photography: Jackie Chan for WE-EF
WE-EF products used: FLC100 projectors and ETC300-GB inground uplights

For more information on this project, please visit www.we-ef.com today.
