Stainless Steel Cavity Wall Tie for Medium Duty Masonry by Cerra Metal Works

Stainless Steel Cavity Wall Tie for Medium Duty Masonry by Cerra Metal Works.

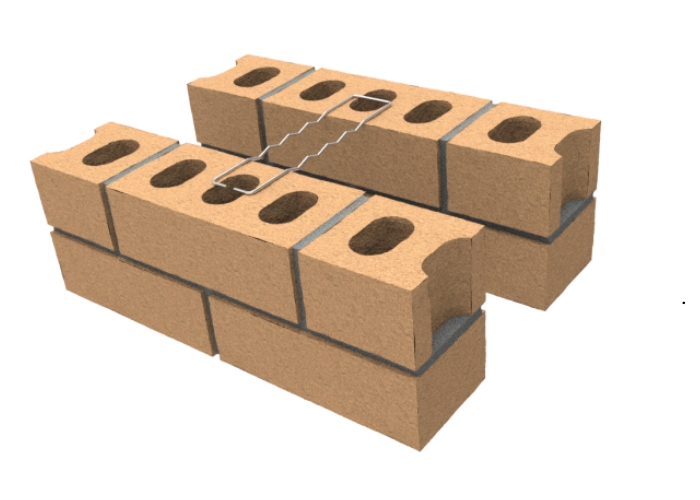

Cerra Metal Works introduces the FIX 120 DLEG 304 Grade, a medium-duty cavity wall tie engineered for reliable structural performance in modern masonry construction. Designed to accommodate cavities up to 120mm, the tie provides secure load transfer between masonry leaves in clay brick-to-clay brick and clay brick-to-blockwork applications.

Manufactured from 304-grade stainless steel, the FIX 120 delivers enhanced corrosion resistance, making it suitable for coastal and marine environments. Unlike galvanised wire alternatives, stainless steel forms a self-repairing chromium oxide layer that protects against corrosion and extends service life.

Stainless Steel Cavity Wall Tie for Medium Duty Masonry by Cerra Metal Works.

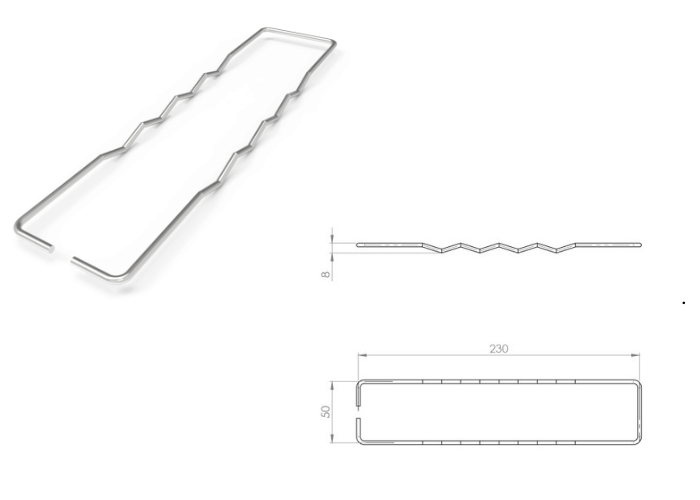

The double leg configuration ensures a stable mechanical connection, while an integrated drip feature prevents moisture bridging across the cavity. Rated R3 for corrosion resistance, the tie offers up to 50 per cent improvement in lifecycle expectancy compared to typical galvanised materials.

Conforming to AS NZS 2699.2 2020 and AS 3700 requirements, the FIX 120 supports compliance in residential and commercial masonry systems.

Supplied in packs of 125 pieces, it provides a durable and practical solution for cavity widths up to 120mm. For more information, visit Cerra Metal Works at cerra.com.au.
