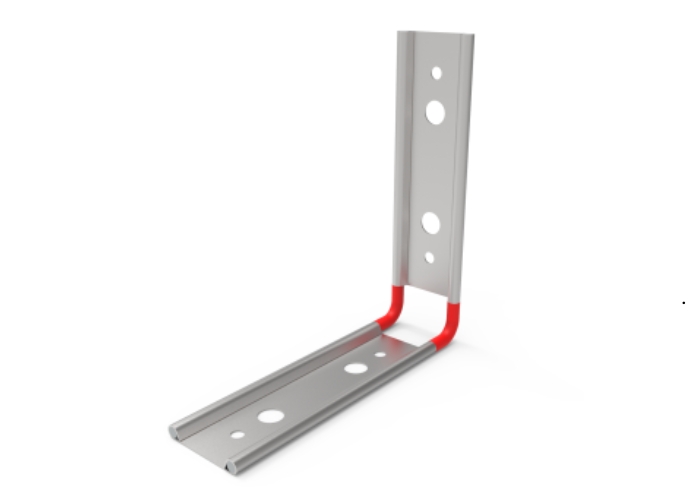

Vertical Control Gap Tie for Masonry Movement by Cerra Metal Works

Managing movement in masonry construction is critical to long-term structural performance. The Vertical Control Gap Tie for masonry movement by Cerra Metal Works is designed to accommodate controlled movement while maintaining stability in brick and block walls.

This sliding tie establishes a vertical control gap of up to 40mm, allowing for vertical and in-plane movement caused by thermal expansion, shrinkage, or differential settlement. At the same time, it secures masonry panels against lateral wind loads, helping prevent cracking, distortion, and internal stress build-up over the life of the building. A built-in de-bonding slide mechanism absorbs movement between adjoining elements, ensuring flexibility without compromising structural integrity.

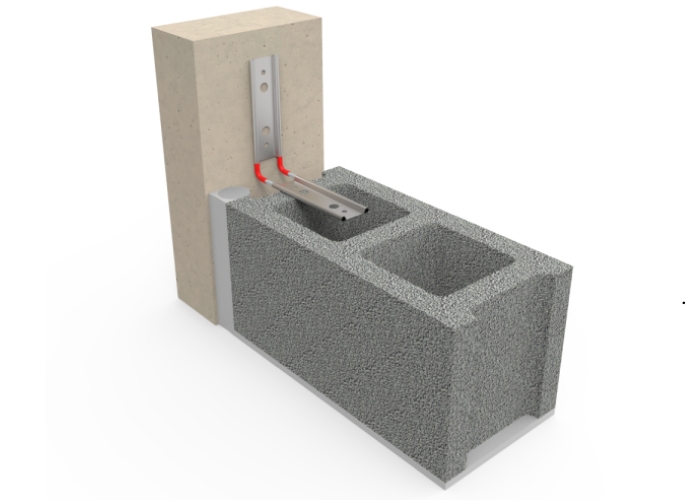

Suitable for use in clay brick and blockwork, the Vertical Control Gap Tie functions effectively as a wall starter and is adaptable to a wide range of applications. Designed and tested in Australia, it complies with AS/NZS 2699.2:2020 and aligns with corrosion resistance requirements under AS 3700.

Available in R2 galvanised Z600, R3 hot-dipped galvanised, and R4 stainless steel 316L, the system can be specified to suit varying exposure conditions. Find out more at cerra.com.au
