Medium Duty Thermal Break Veneer Wall Tie by Cerra Metal Works

Medium Duty Thermal Break Veneer Wall Tie by Cerra Metal Works.

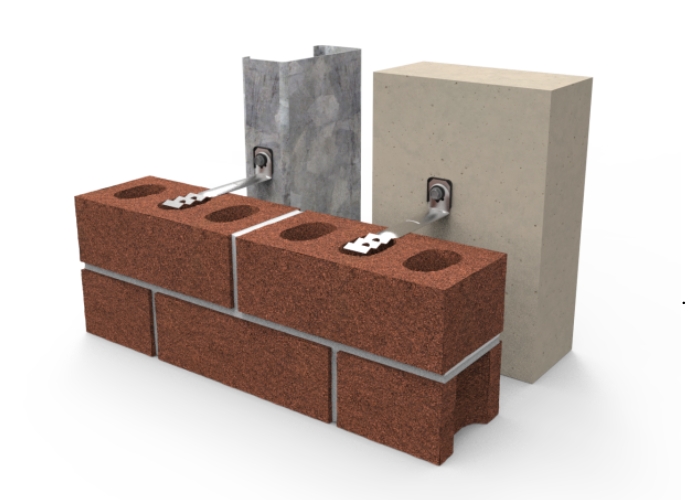

The Isolation Thermal Break Medium Duty Veneer Wall Tie from Cerra Metal Works provides a high-performance fixing solution for brick veneer and blockwork applications where strength, insulation, and corrosion resistance are critical. Designed as a Type A face-fix tie, it incorporates a thermal break washer to reduce thermal bridging and improve wall system efficiency.

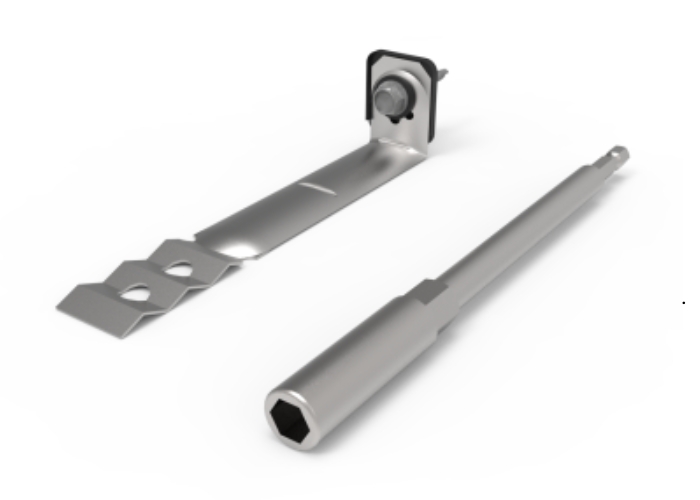

The isolated design allows installers to pair a stainless steel 316L tie with a galvanised screw and frame, delivering durability while simplifying onsite compatibility. The integrated screw fastener and included driver enable faster installation with reduced frame loosening, supported by a C4-rated multipurpose screw engineered for high tensile loads.

Medium Duty Thermal Break Veneer Wall Tie by Cerra Metal Works.

Tested to AS/NZS 2699.2:2020, the tie supports cavities up to 75 mm and is suitable for clay brick, blockwork, and mixed-substrate installations. Standard lengths range from 100 mm to 200 mm, providing flexibility across residential and commercial builds.

Combining structural performance with thermal efficiency, Cerra's wall tie offers a reliable solution for modern façade systems. For more details, please visit www.cerra.com.au
