Pre-Nailed Veneer Tie for Timber Framing by Cerra Metal Works

Pre-Nailed Veneer Tie for Timber Framing by Cerra Metal Works.

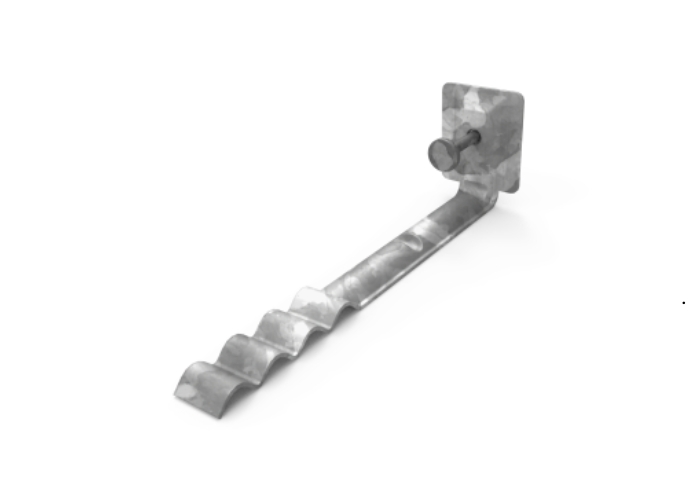

Cerra Metal Works' NailMate Face Fix Veneer Tie is designed to streamline brick veneer installation on timber-framed structures. Supplied with a factory-fitted galvanised nail, the tie removes the need for separate fasteners on site, helping installers work more efficiently while maintaining consistent fixing across the wall system.

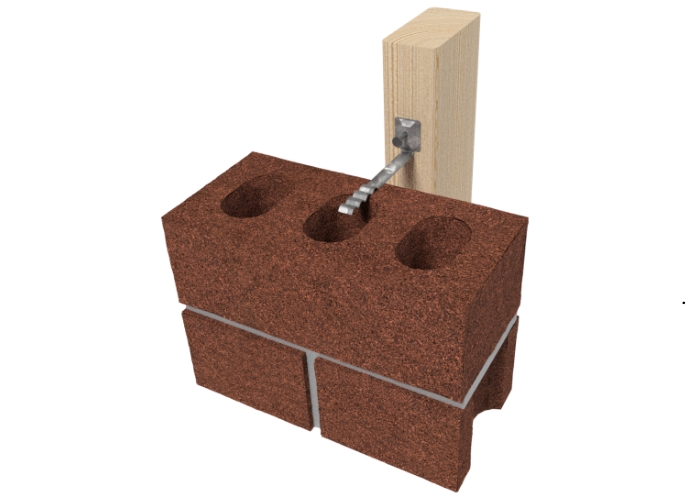

Configured as a Type A face-fix veneer tie for cavities up to 50 mm, NailMate is suited to clay brick veneer applications in residential and low-rise commercial construction. The integrated connector nail, measuring 30 mm long with a 2.8 mm diameter, secures the tie directly to timber framing to assist with stable brick alignment and effective load transfer during construction.

Pre-Nailed Veneer Tie for Timber Framing by Cerra Metal Works.

Designed and tested in Australia to comply with AS/NZS 2699.2:2020, the system also features R2 galvanised Z600 corrosion protection for durability in standard exposure conditions. The ready-to-install design supports faster installation while maintaining compliance with current masonry fixing requirements. Check out more about this solution at cerra.com.au.
