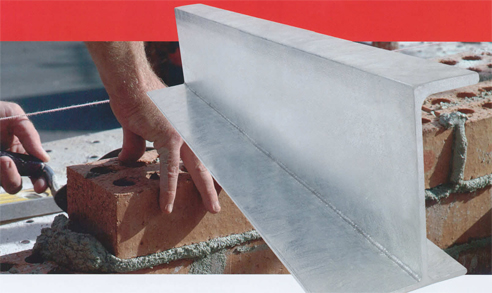

Galintel J-Bar Shelf Beam from Treco Steel The Galintel® J-Bar* Shelf Beam is the ideal solution for cavity walls, either double brick, or brick veneer with timber trusses. The J-Bar* was developed in response to demand from builders for an economical substitute for built-up steel sections such as a fabricated parallel flange channel and plate which have to be galvanised post fabrication. Similar to a T-bar but with the bottom flange pre-drilled and a special pre-drilled top flange incorporated into the upright section. It is hot-dip galvanised achieving an R3 durability rating, fully engineered and university tested with a full product warranty and safe load tables. The Galintel® J-Bar* Shelf Beam is manufactured in 300mm increments from 3000mm up to 6300mm.
|
1800 LINTEL (546 835) 117-153 Rookwood Road, Yagoona NSW 2199
|
