HEPA Box-type Compact Filters by Camfil

Camfil offers compact, box-type filters that are usually used in make-up-air or recirculation units as a final HEPA stage to protect terminal HEPA filters in cleanrooms. It can be used from food and beverage to pharmaceuticals to microelectronics manufacturing locations.

What is a compact filter? A compact filter refers to an air filter that has a compact structure. The filter element is pleated and folded much more compactly than other types. Hence, it would have a larger capacity, higher filtration efficiency, and the middle or final filter roll.

Compact box-type filters can also be used in the exhaust air to help remove all harmful ultrafine particles, whether chemical, biological or radioactive.

Below is the specifications of the standard size of a compact filter:

Full module standard size: 610x610 mm.

• Some box type sizes can reach 762x610 mm, depending on the design.
• Depth: 150 mm and 292 mm.
• Frame materials: plastic, wood or metal.
• Media: glass fibre.

Here are some of the available compact filters from Camfil:

HEPA Box-type Compact Filters by Camfil.

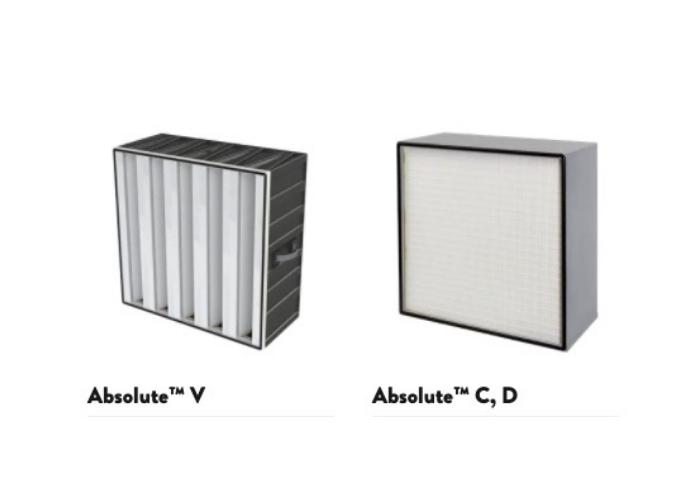

Absolute™ V

• V-shaped filter packs for highest airflow
• Optimized design for highest performance
• Energy efficient
• Long lifetime
• Easy to install and handle

Absolute™ C, D

• Flat filter surface - ideal for scanning (integrity test)
• Medium to high airflow
• Fully customizable

To know more about box-type filters that fit your needs, reach out to a Camfil representative today here.
