Standing Seam System for 3D Geometric Buildings by Kingspan

Standing Seam System for 3D Geometric Buildings by Kingspan.

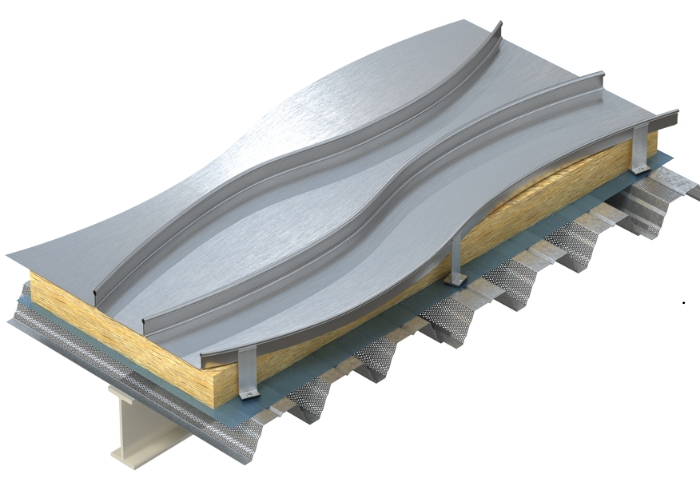

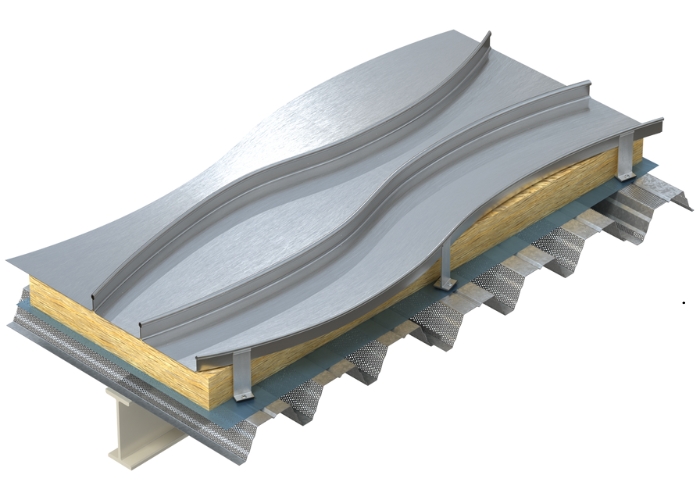

Architectural creativity meets cutting-edge engineering with KingZip Infiniti, Kingspan's advanced built-up standing seam system. Designed specifically for complex shapes and bold architectural forms, this solution gives designers and builders the freedom to turn even the most ambitious 3D geometries into reality.

KingZip Infiniti is engineered for versatility- it can be smoothly curved to a 1 m convex radius and 8 m concave radius when using 1.2mm aluminium rollforming. With customisable cover widths ranging from 130 mm to 1000 mm, the system supports a wide range of design requirements without compromising performance.

Standing Seam System for 3D Geometric Buildings by Kingspan.

This standing seam system also delivers superior thermal, acoustic, and fire performance. Achieve Rw ratings up to 64dB and NRC values up to 0.8 with high-performance acoustic buildups, while its thermal systems can reach U-values as low as 0.10 W/m2K. For enhanced insulation, hybrid systems combining KingZip with Kingspan's QuadCore Roofliner panels offer the ultimate roofing solution.

With long-term durability and weatherproofing, KingZip Infiniti isn't just a statement in design- it's a high-performance system built to last. Ready to push the boundaries of architectural design? Visit Kingspan at www.kingspan.com to learn more about KingZip Infiniti.
